Water Tower

January / February 2017

Group Project with Lidia Dynes-Martinez, Keshav Jagan and Ian Kegler

Goal

Design a water tower with minimal mass and maximum strength

Contribution

Every team member generated several designs and tested them using Solidworks FEA software. It was found that my design had the best strength to weight ratio and was therefore selected as the final structure.

 Execution

The water tower was designed using the material properties of Bucatini pasta (a round hollow shape pasta, like a pipe). We then built the tower itself out of Bucatini and tested it to see whether our predicted buckling load and compressive strength were correct.

Ideation

Iteration

The final 2 iterations were very similar; these consisted of stacked layers of either pentagons or squares. It was found that the squares were superior overall due to the lower mass.

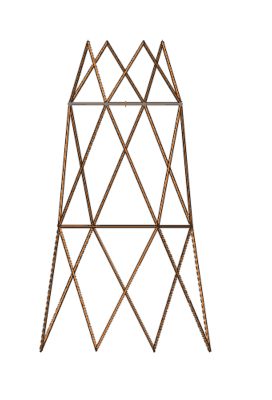

Final Design

Compression Results

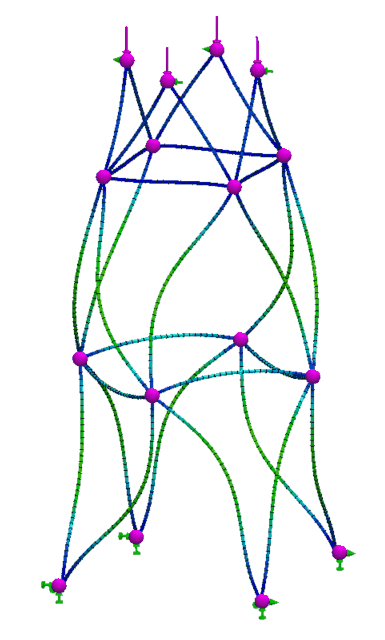

Buckling Results

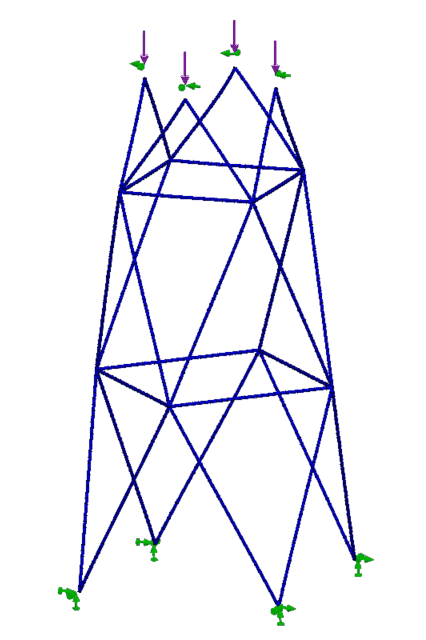

Static Design
