Asthma is a respiratory disease affecting 235 million people globally. Asthma causes airways to swell and narrow in response to an external trigger, making breathing difficult. Afflo is an AI enabled wearable device to monitor asthmatic symptoms and environmental factors, making predictions about a patient's key triggers

1 in 12 people in the UK are currently receiving treatment for asthma

The NHS spends around 1 billion pounds a year treating and caring for people with asthma

0.4 % of asthma sufferers in the UK have access to specialist care

Afflo is an AI enabled wearable device to monitor asthmatic symptoms and environmental factors, taking the guesswork out of trigger diagnosis.

afflo position.png

THE AFFLO WEARABLE

Attaches to the chest to listen to breathing, coughing and wheezing using a microphone.

Afflo Pod.png

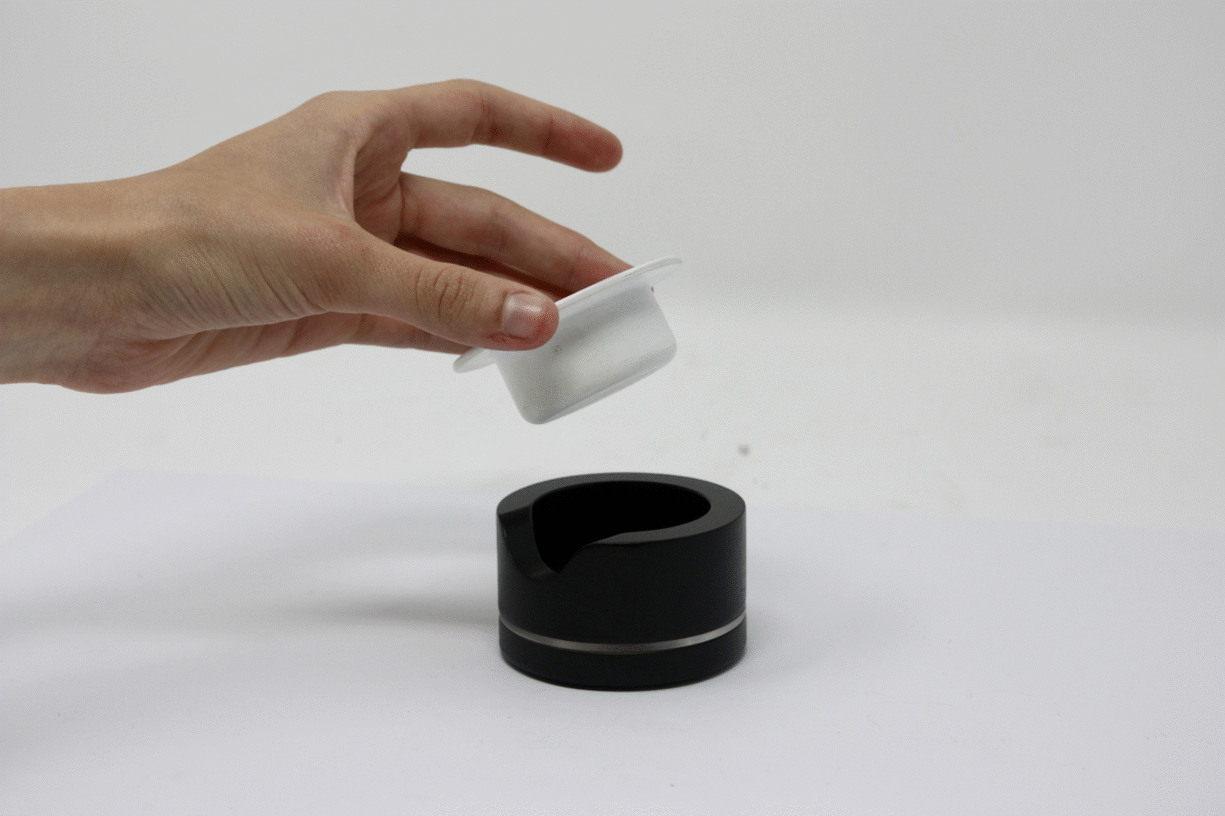

THE AFFLO POD

A bundle of sensors, gathering data about the users' environment, informing trigger predictions.

Asset 3.png

THE AFFLO APP

A mobile interface that presents the collected data back to the user.

BC7CB00F-1339-45F8-BEB7-8A0D551A939C.jpe

The System


The data collected by the Afflo Wearable and Afflo Pod is uploaded to the mobile application once a day via bluetooth. Overnight, this data is sent to the Afflo servers to train that user's customised algorithm.

The boxes shown in purple were selected as the main project scope. This allowed time to be focussed on the most critical areas.

Use Case


PHYSIOLOGICAL SENSING

To record the respiratory noises made by the user, a microphone would be used. This choice was based on extensive research. The optimal type of microphone and the influence of external factors was found through rigorous testing.

Test Methods

A test procedure was developed to make quick, direct comparison between different microphones and housings.

The Test Cycle


The Breathing Cycle

Asset 1.jpg

Test Microphones

stethescope up.png
dynamic mic.png
stethescope down.png
test locations.png

Chest positioning was tested alongside the effect of clothes brushing past the microphone.

Signal Analysis

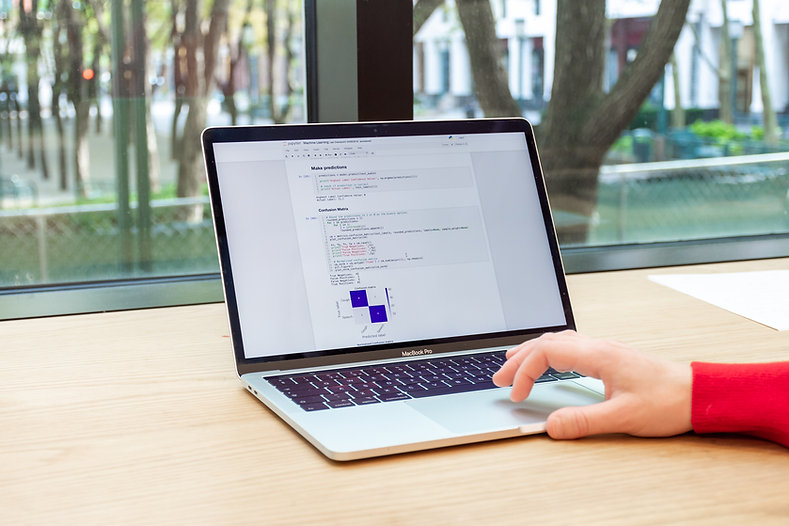

The collected Audio signals were analysed using Python scripts on Jupyter notebook.

Some signals recorded the heartbeat as well as the respiratory signals, disrupting results. This was removed through outlier identification using a dynamic range gate, in which 0.045 seconds of signal was removed from either side of an identified heartbeat.


Results

It was found that the dynamic microphone was the optimal microphone, displaying sufficient sensitivity with minimum power consumption. The effects of clothes movement could be mitigated using a layer of acoustic foam and rubber.

PRODUCT DEVELOPMENT

The testing lead to the selection of the most promising microphone option. The Afflo wearable was then designed to house this microphone and other components.

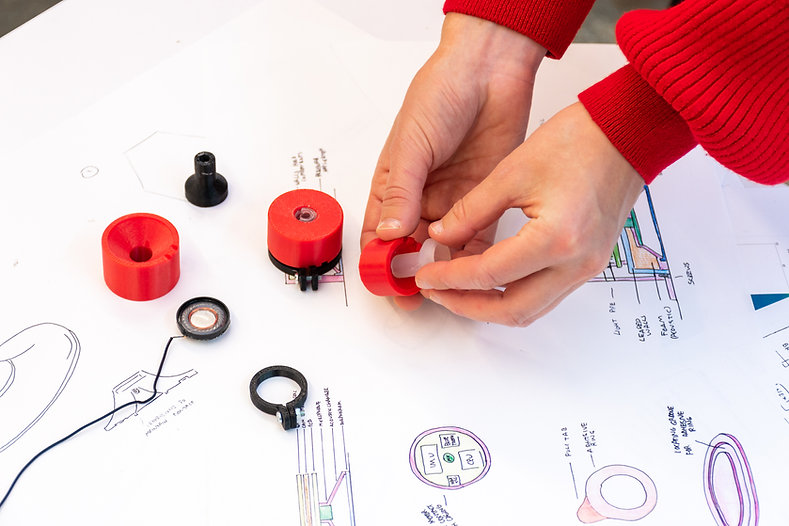

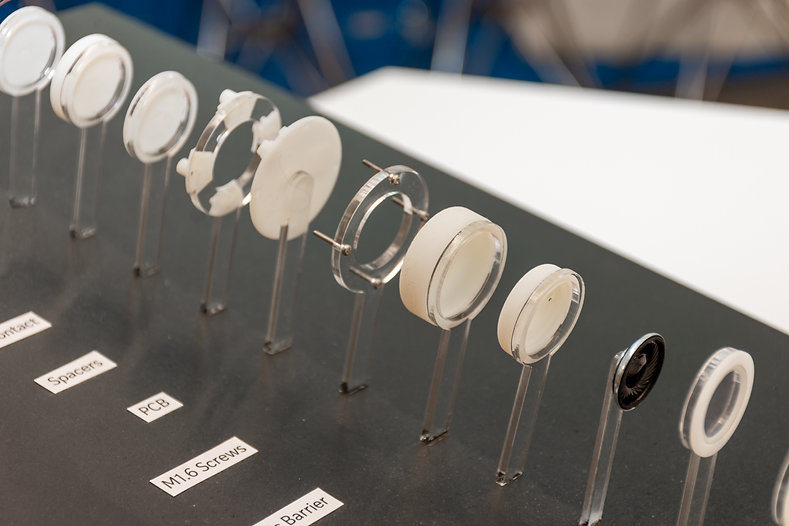

Component Selection


Battery Selection

Basic current draw tests using an Arduino were carried out alongside duty cycle calculations to select the optimum battery.

current tests.png
Screenshot 2019-06-28 at 22.23.49.png

Data Storage

The amount of memory required was found to be 397 MB using the equations below.

equations data.png
Exploded for insta2.jpg
Exploded for insta.jpg

INDUSTRIAL DESIGN

It was important that the design was not only functional, but desirable and comfortable to wear. By developing the technological and design aspects in parallel, it allowed one to influence the other fluently, meaning that form did not follow function nor did function follow form

Sketching

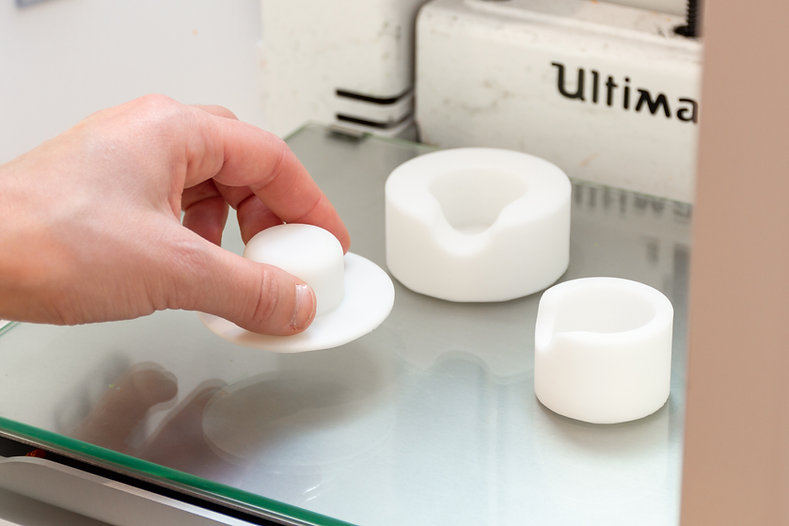

Blue Foam

Exploded for insta3.jpg

Final Design

Exploded for insta.jpg

UI/UX

The Afflo application allows users to review their collected data to properly inform their asthma management. This completes the feedback loop of the end-to-end Afflo system.

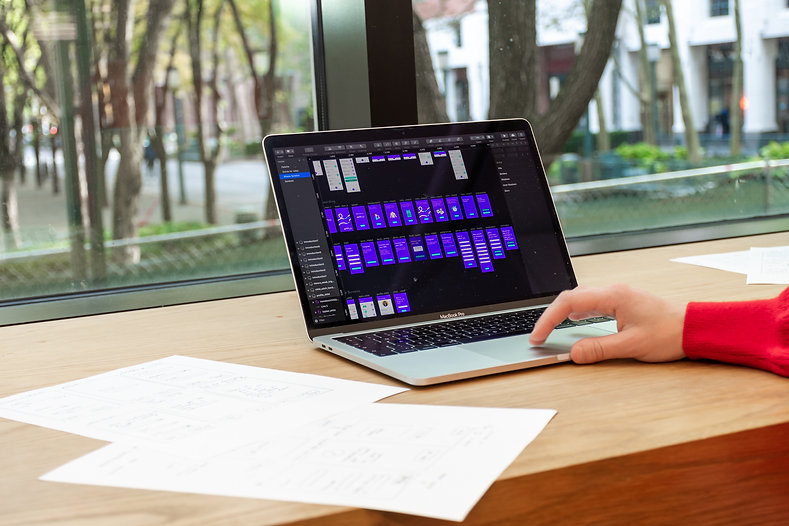

Flowchart


01

02

03

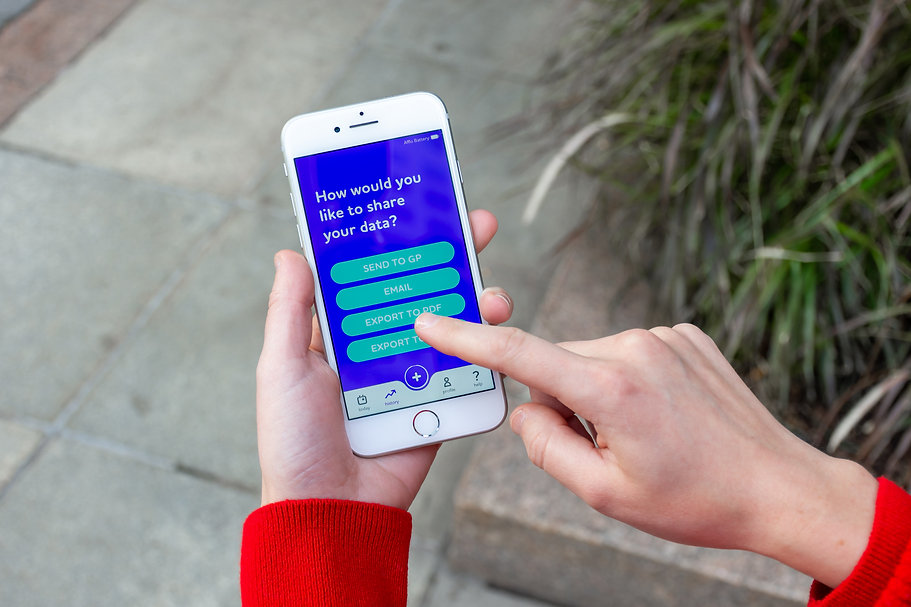

Final Interface

DAE963CF-0AEB-426C-9D64-A6603AD5CCD3.jpe

ARTIFICIAL INTELLIGENCE

Machine learning was used to identify the difference between different respiratory events, correlating symptoms with triggers.

To demonstrate a proof of concept, a machine learning algorithm was developed that can identify the difference between clips of speech and coughs in a binary classification problem. This is a function that would be required by the final device, to properly ignore unimportant information.

Labelled melspectrograms from the Google Audioset were used to train a Convolutional Neural Network (CNN). This was built using Keras in Python, running on a Tensorflow Backend. The final model was found to be 83 % accurate.

The 10 second audio clips from the Google Audioset were converted into Mel-Spectrograms before being fed into the CNN

Results

model loss.png
model accuracy.png

Results on my own recordings

Results on test dataset

ENGAGEMENT

Design choices throughout the project were influenced by external input from key stakeholders including patients, doctors and nurses.

Expert Panel

Screenshot 2019-06-29 at 01.31.56.png

relationship was built with Guys and St Thomas' hospital, facilitating patient, nurse and doctor interviews.

1200px-Guy's_and_St_Thomas'_NHS_Foundati

FURTHER WORK

For project enquiries, please contact me here.
